RF Explorer külső antenna 1Ghz-ig

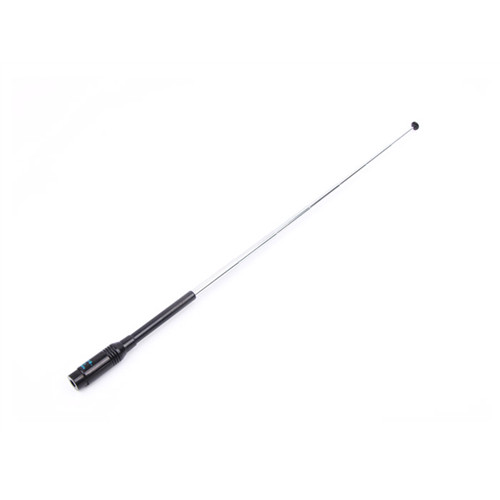

The Nagoya NA-773 antenna is a 50 ohm, SMA male connector telescopic antenna designed for handheld devices operating in 144MHz and 430MHz ranges, and offers good response and performance for all frequencies below 1GHz.
This antenna is included in several RF Explorer models such as WSUB1G, ISM Combo, 3G Combo and 6G Combo. You can order this as replacement if your original antenna got damaged or lost, or as an extra antenna for multiple purposes such as using it with RF Explorer Signal Generator.
Feature：
· Telescopic Nagoya NA-773 antenna with SMA male connector
· Same model included in several RF Explorer models
Specification：
· Impedance: 50 ohm
· Dual band: 144/430MHz – usable at all frequencies below 1GHz
· VSWR at 144/430MHz: <1.5
· Gain at 144/430MHz: 2.1dBi
· Max power: 10W
· Length: 40.3cm (fully extended)
· RoHS compliant
