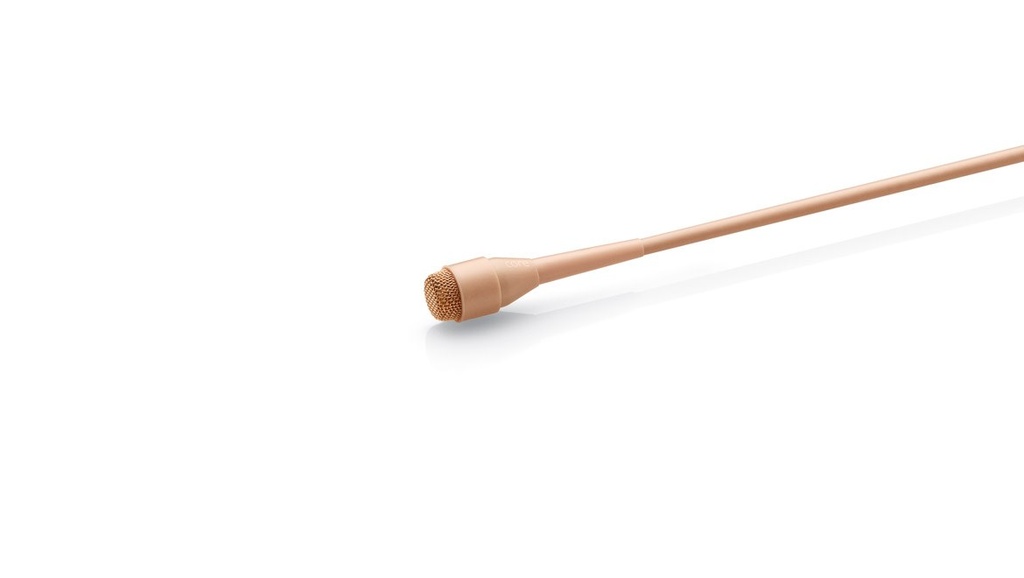

DPA 4060 Series Omni Miniature Lavalier Microphone (4060/4061/4062/4063/4071)

Price:

121,920.00 Ft
Studio | Stage| Cinema
English (US) • HUF
DPA 4060 Series Omni Miniature Lavalier Microphone (4060/4061/4062/4063/4071)
  2. Shop
  3. DPA 4060 Series Omni Miniature Lavalier Microphone (4060/4061/4062/4063/4071)
DPA 4041 Omnidirectional Large Diaphragm Microphone, P48
DPA 4041 Omnidirectional Large Diaphragm Microphone, P48
2,012,900.00 Ft
2,012,900.00 Ft
DPA BLM6000-B
DPA BLM6000-B
7,900.00 Ft
7,900.00 Ft

DPA 4060 Series Omni Miniature Lavalier Microphone (4060/4061/4062/4063/4071)

https://www.bluesound.hu/web/image/product.template/1374/image_1920?unique=17f16dd

4060 CORE Omni Mic, Normal SPL, Black, MicroDot

121,920.00 Ft 121920.0 HUF 152,400.00 Ft Bruttó

Not Available For Sale

(0.00 Ft / piece)
  • Brand
  • Color
  • Sound Pressure Level
  • Termination
  • Directional pattern

This combination does not exist.

dpa film
Contact Us
DPA
Internal Reference
 4060-OC-C-F00
Tags

A 4060 Omni Mic a legelső olyan miniatűr mikrofon, amelyet a DPA fejlesztett ki, kihasználva azokat a legjobb technológiákat, amelyeket korábban kizárólag hallókészülékekben és méréstechnikai mikrofonokban alkalmaztak. Ez a mikrofon akár 134 dB-es hangnyomásszintet (SPL) is képes kezelni a torzítás (clipping) megjelenése előtt. Kiválóan alkalmas olyan felhasználási területekre, ahol a hangforrás távolabb helyezkedik el vagy halkabb/tompítottabb, és jó jel-zaj arányt kell elérni.

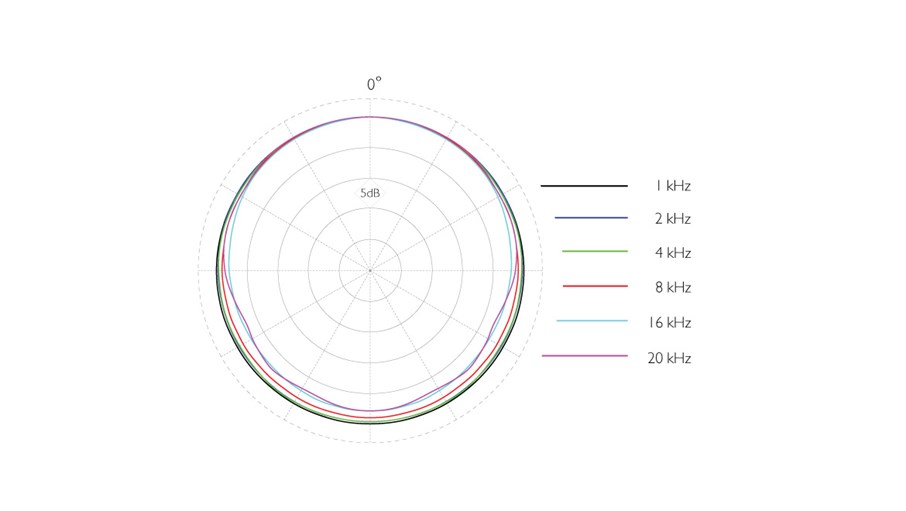

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser

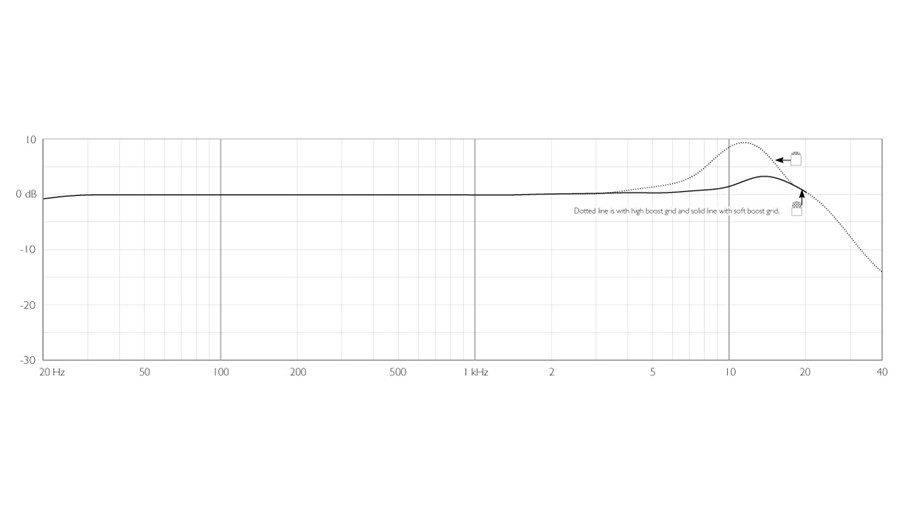

Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dBSoft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%133 dB SPL RMS, 136 dB SPL peak
Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
Dynamic rangeTyp. 111 dB
Max. SPL, THD 10%144 dB SPL peak
Rated output impedance30 - 40 Ω
Cable drive capabilityUp to 300 m (984 ft) with DAD9001-BC XLR Adapter
Power supply (for full performance)For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
ConnectorMicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight7.5 g (0.26 oz) incl. Cable and MicroLock connector
Microphone diameter5.4 mm (0.21 in)
Microphone length12.7 mm (0.5 in)
Cable length1.8 m (5.9 ft)
PolarityPositively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Sensitivity selection tolerance (at 1 kHz)±1.5 dB



Brand DPA
Color Beige
Sound Pressure Level Normal SPL
Termination MicroDot
Directional pattern Omnidirectional
